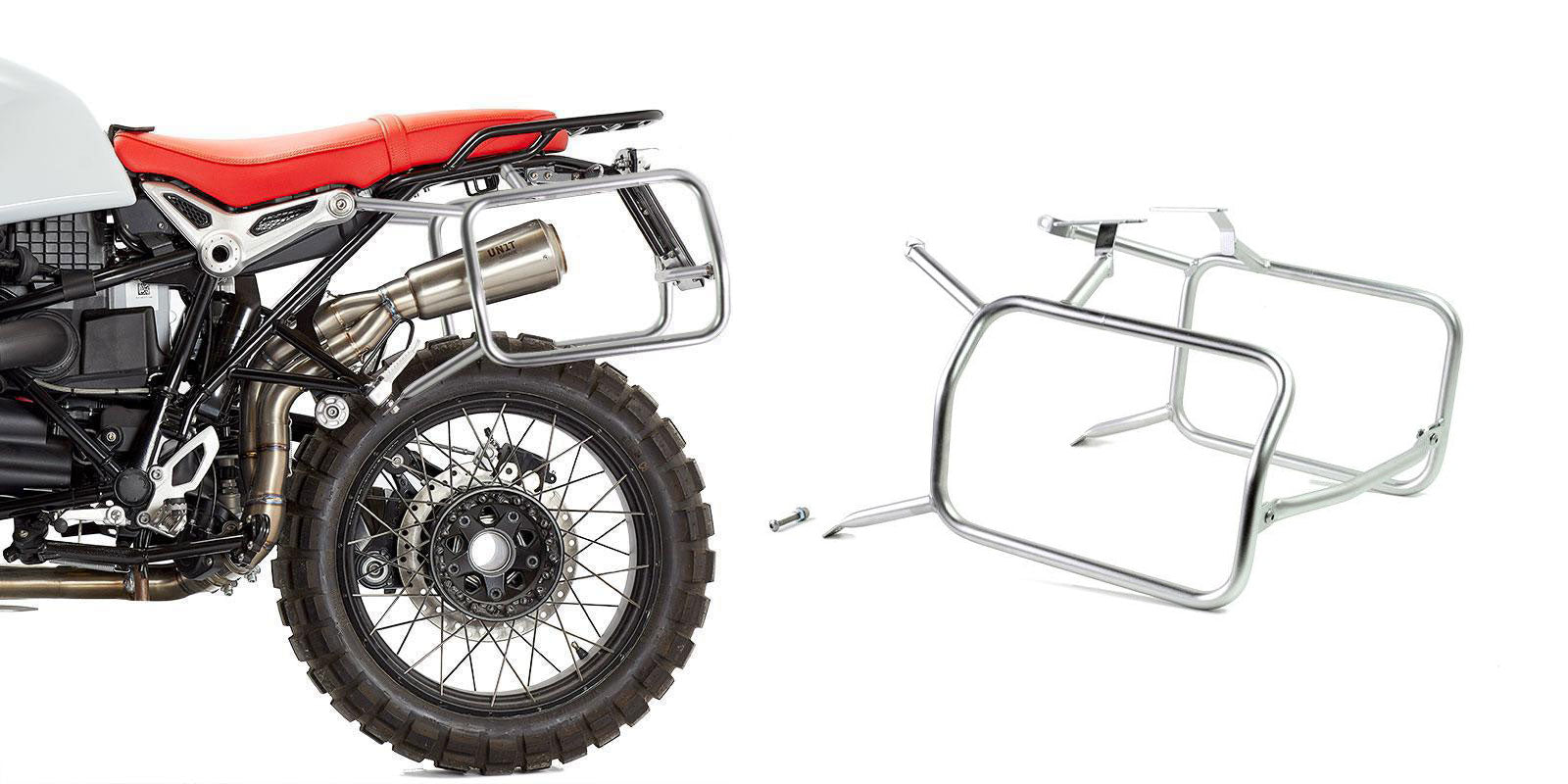

UNIT Garage ATLAS series racks are ready for big trips and capable of higher-volume payloads; a feat they achieve without looking like overbuilt scaffolding. These adventure-ready racks are well designed, cleanly braced, and mount up with the precision of an OEM factory accessory.

ATLAS racks connect to a specific set of bikes' subframes at three locations per side (versus two for the lighter-duty UNIT's Klickfix racks), and are further secured by a fourth connection point thanks to the cross-brace running across the back. Model-specific instructions and all necessary metric mounting hardware come included.

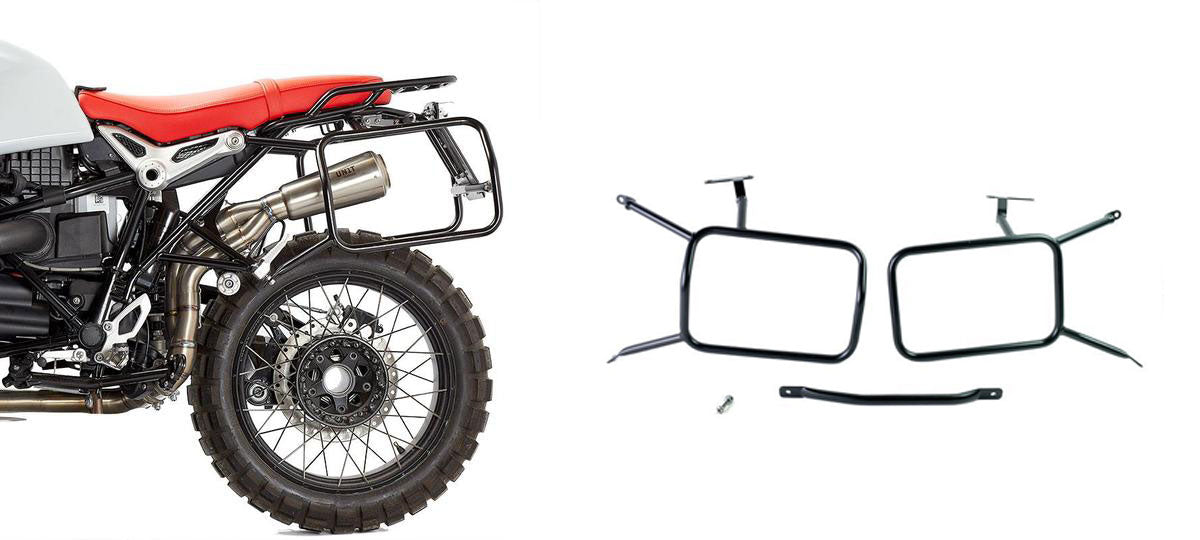

These racks are precisely formed from 18mm stainless steel with a 2mm wall thickness, and are offered in a matte black epoxy powder finish. Some models also are available in a silver micro-blasted and electropolished surface finish.

UNIT Garage ATLAS Racks are designed to work within the family of corresponding ATLAS series soft bags and hard cases—which include a waxed canvas model with leather trim, a more modern and fully waterproof Khali-series TPU soft bag, and a series of locking aluminum hard cases.

If UNIT's growing catalog of ATLAS side racks doesn't include your bike, the company offers the rack profiles as DIY raw steel luggage loops, which will require custom fabrication to fit up.

The ATLAS rack design wisely mimics the offset exhaust-side profile contour of the BMW GS OEM factory racks, and offers the same profile for any bike requiring an exhaust-side offset.

This means that while the mounting points between bikes will vary wildly, the mounting profile remains the same. It also means that all the UNIT Garage ATLAS bags are reverse-compatible with both BMW factory luggage racks, and many other 3rd party racks.

And vice versa.

UNIT Garage ATLAS racks also play nice with a wide range of other 3rd party bags and accessories, EG: Kriega OS series 22- and 32-liter side panniers. And with the Kriega OS plates mounted to ATLAS racks, users can also mount up the smaller OS bags, and/or RotoPax fuel or water containers. ATLAS racks also work with ACME Moto hard cases, via the same hardware designed to mount to Original BMW racks.

ATLAS RACK SPECS:

• Motorcycle specific design with a factory fit/finish
• 18MM Stainless Steel Tubing
• 2MM Wall Thickness
• 3-Point connection to bike, per side
• 4th Connection point in rear crossover-piece
• Matte black epoxy powder finish
• (*Some models also are offered in a silver electropolished finish)
• Compatible with all UNIT Garage ATLAS Series soft bags and hard cases
• Also compatible with many 3rd party bags and cases
• Made in Italy

Note:

The standard OEM US version indicators can interfere with the setup. US customers will benefit from upgrading to Unit Garage's Short-Stalk Turn Signals

For more information about the UNIT Garage product lineup, product compatibility FAQs, and an overview of the company's approach, check out the UNIT Garage Buyer's Guide, or get in touch with any fitment or availability questions about this or any other UNIT Garage products by emailing support@uniongaragenyc.com.
